|Power supply:||AC220V/50HZ||Machone total power consumption:||less than 500W|
|Graphic format supported:||AI, PLT, DXF,BMP,DWG etc||application materials:||All metals and most of plastics|
|Laser power:||50W ( other power can be optional )||Pulse width:||90 -120ns|
|Repeat frequency:||20 - 200KHZ||Cooling:||Air cooling|
|laser wavelength:||1064nm||Single pulse energy:||1 MJ|
|Min. line width:||0.02mm||Min. word height:||0.5mm|
|Marking range:||100 * 100mm (can be customized )||laser ourput stability:||2%|
|Laser beam quality:||less than 2|
Aluminium fiber laser marking machine with power 50W/metal deep laser engraving machine
1. Machine General characteristics:
Machine's optical parts special for Aluminium, brass and metals materials fast speed and high precision laser marking and engraving.
Machine designed main for the barcode marking, data matrix marking, Series number marking, technical data sheet marking and anti-fake code marking etc...
This machine designed with smart and compact size, esay to use and to move, save space, this machine with flexible application and easy to operate.
Machine no daily maintenance , no consumable parts and long lifetime, machine using common air-cooling system. Fiber output, suitable for black marking.
Machine equipped with laser beam isolation device from which can extend the laser lifetime and can acheive the deep engrave the high reflective materials, like the AL and brass ,copper etc...
★ The Advantages of our desktop Aluminium fiber laser deep marking machine:
1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect, superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
2) Machine no maintenance, deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect,Machine with strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc...machine integrated Air Cooling System, the cooling effect is more excellent than the water cooling effect in YAG laser.
3) Easy software operation, strong functions,high-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid, long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs).
4) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path,low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental,original JCZ controller, USB interface, swift and stable transmission.
5) Machine no Consumables: One Fiber marker can work for more than 10 years without any consumables, high Speed: 7000mm / second, is 3 to 5 times above that of traditional products.
2. Applications industries:
This kinds of desktop small size fiber laser marking has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy. It is widely used in: advertising industry, arts industry, electronic components industry, medical device industry, glasses watch and clock industry, IC card industry, plastic tool industry, kitchen and bathroom appliance, etc.
3. Desktop fiber laser marking machine main technical parameters :
|Length of laser weave||1064nm||1064nm||1064nm||1064nm|
|Marking scope||110x110~ 250x250||110x110~ 250x250||110x110~ 250x250||110x110~ 250x250|
|Min line width||0.05mm||0.05mm||0.05mm||0.05mm|
|min character||0.15 mm||0.15 mm||0.15 mm||0.15 mm|
|Power supply||220V(±10%)/50Hz/ 3A||220V(±10%)/50Hz/ 3A||220V(±10%)/50Hz/ 3A||220V(±10%)/50Hz/ 3A|
PS: the laser power 10W and 20W just for simple shallow marking and engraving, 30W and 50W for depth marking
4, Machine application materials:
|17-4 PH stainless steel||Magnesium|
|303 stainless||Metal-plated ceramics|
|6061 Aluminum||Nickel plated 1215 mild steel|
|ABS (white/black)||Nickel plated brass|
|Aluminum, 6061||Nickel plated gold|
|Aluminum, yellow chromate||Nickel plated Kovar|
|Bayer 2807 Makrolon polycarbonate||Nickel plated steel|
|Bayers bayblend FR110||Nylon|
|Black/white ABS||PEEK, white|
|Black/white polycarbonate||Polycarbonate (black/white)|
|Brushed aluminum||Polycarbonate resin 121-R, GE Plastics|
|Carbon fiber||Polycarbonate, Bayer 2807 Makrolon|
|Ceramics, metal-plated||Rynite PET|
|Clear coat anodized aluminum||Santoprene|
|Cobalt chrome steel||Silicon carbide|
|Colored delrin (black/brown)||Silicon steel|
|Compacted powder iron with phosphate coating||Silicon wafers|
|Copper||Stainless steel 303|
|DAP - Diallyl Phthalate||Stainless steel 17-4 PH|
|Delrin, colored (black/brown)||Steel 4043|
|GE Plastics polycarbonate resin 121-R||Steel, machine tool|
|Glass filled PEEK||Various inconel metals (nickel-chromium super alloys)|
|Glass filed Teflon||White PEEK|
|Hard coat anodized aluminum||Yellow chromate aluminum|
|Inconel metals (various)||Zinc plated mild steel|
|Machine tool steel||And Many More|
5, Our fiber laser marker main advantages:
5.1. Our machine's fiber laser source adopt the Germany IPG or China's top quality Raycus famous brand, other key optic parts we adopt the famous brand wo ensure the machine with exporting standard ( A top quality ) .
5.2. We can customized the laser marking machine as per customer's requirements, for example to design the special fixtures, the automation system and the corresponding matching services.
5.3. Have the professional QC team for machine quality controal, we need at least 3 days to test the machine's stability before machine shipping out,
5.4. Recommend the machine as per customer's exact needs with the concept of Economic and practical.
5.5. We not only provide the machine itself, but also provide the professional laser solutions at customer end.
5.6. After sale team response customer's problems within 12 hours for oversea market, So buy our laser machines without any future worries .

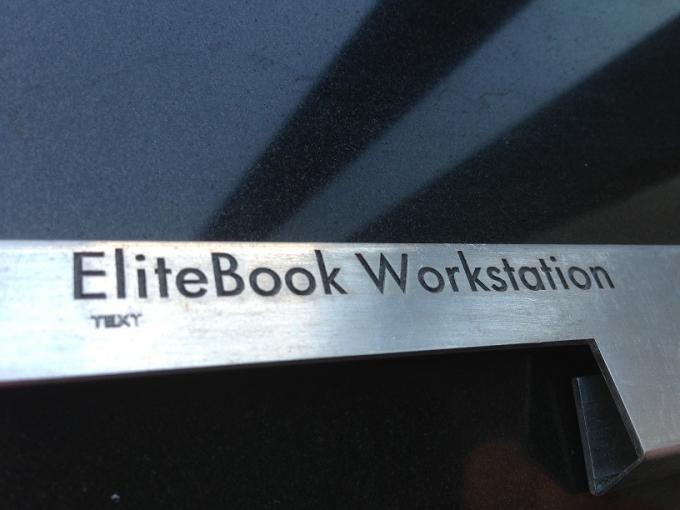

6. The real laser marking samples for reference as follows:
Welcome to contact us for more informations about laser marking machines, we can customized different kinds of laser marking system depend on customer's actual requirements.
